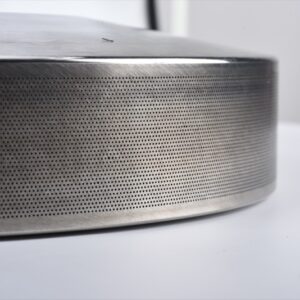

Spinner
- Material: Cobalt Chrome Alloy
- Process: Investment Casting
- Density:8.4 g/cm ³
- Size: ⌀200-500 mm or Custom upon request
- Hole size: ⌀ 0.5-1.0mm
- Operating Temperature: 1050 °C
- Rotating Speed: ≤3000 r/min

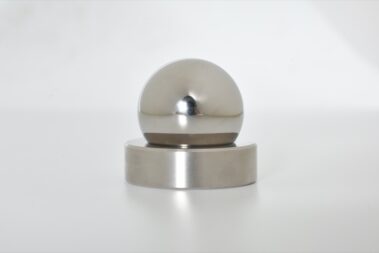

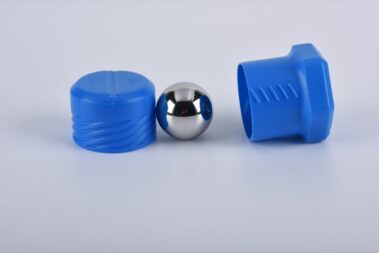

Valve balls
TS0014
- Material: Stellite 20 equivalent. We also provide nickel-based and stainless-steel materials. Others upon request.
- Process: Powder Metallurgy
- HRC: 56-63
- Density: 8.72 g/cm ³
- Size: Refer to table below or custom upon request

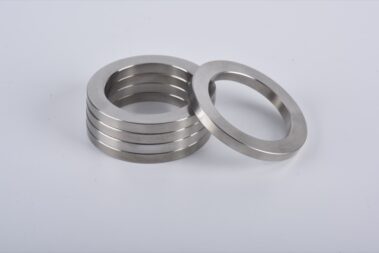

Valve Seats
TS0015
- Material: Stellite 3 equivalent. We also provide nickel-based and stainless-steel materials. Others upon request.
- Process: Powder Metallurgy
- HRC: 50-57
- Density: 8.61 g/cm ³
- Size: Refer to table below or custom upon request
EX- DELORO STELLITE® EMPLOYEES
- Our R&D, Production, and Quality Assurance team consists of ex-Deloro Stellite® employees who have extensive experience working with Stellite® and other Cobalt and Nickel-based alloys. Benefitting from experience gained from working in Deloro Stellite®, we can deliver the solutions that best suited your specifications and needs.
No MOQ
- NO JOB IS TOO SMALL. Our own manufacturer plant enables us to provide products based on your specifications. It is our mission at TMetal to tailor our services to meet the needs of our customers.
Local warehouse
- We pride ourselves in stocking inventory locally. That means a decreasing lead-time and turnaround time, higher efficiency, and lower costs for our customers.
Quality Guaranteed
- TMetal’s valve balls and valve seats follow strict industry standards and specifications. Each of our finished product must pass through our quality assurance team for a full inspection before delivery.
DIMENSIONS AND DRAWINGS
| DIMENSIONAL SYMBOL | V11-106 | V11-125 | V11-150 | V11-175 | V11-225 | V11-250 | V11-375 |
|---|---|---|---|---|---|---|---|
| SD (mm) | 15.875 | 19.05 | 23.8125 | 28.575 | 34.925 | 42.8625 | 57.15 |
| D (mm) | 20.142 | 23.317 | 29.667 | 35.255 | 43.688 | 51.054 | 78.029 |
| d (mm) | 11.89 | 14.61 | 17.83 | 21.08 | 26.57 | 32.13 | 44.5 |
| h (mm) | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 19.05 |
AFTER-SALE CUSTOMER CARE
- We value our customers' experience at every stage of their purchases. Our after-sales customer care team is able to:
Assist with material selections for post-processing such as hardfacing and casting
Assist with material selections for post-processing such as hardfacing and casting
R&D Facilities
- TMetal partners with leading engineers and scientists from University of Toronto and Carleton University, all dedicated to creating reliable products. TMetal's pursuit in innovative breakthroughs strengthens our position as an industry innovator in materials science and technology.
Department of Materials Science & Engineering
Department of Mechanical & Aerospace Engineering
